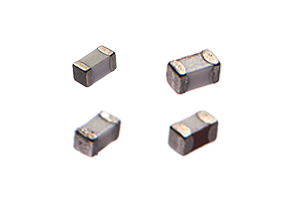

叠层陶瓷电感
MCI(一般用)
FEATURES
?Multilayer design with ceramic design
?High SRF up to 15Ghz
?Small size and small tolerance available
APPLICATION
?HF application
FEATURES
?Multilayer design with ceramic design
?High SRF up to 15Ghz
?Small size and small tolerance available
APPLICATION
?HF application
| 产品图 | 系列号 | 尺寸(mm) | 电感值(nH) | 温升电流(mA) | 直流电阻(Ω) | 自谐振频率(MHz) | 文件下载 |
 | MCI0201 | 0.6*0.3*0.3 | 1.0~39.0 | 200~300 | 0.06~1.6 | 1400~13000 |  |
 | MCI0402 | 1.0*0.5*0.5 | 1.0~120 | 100~300 | 0.12~2.5 | 750~15000 | |
 | MCI0603 | 1.6*0.8*0.8 | 1.0~220 | 600 | 0.1~2.8 | 450~17000 | |
