Home >> Moulding Inductor( Carbonyl Powder) >> >> MDCA(Automotive Grade)

Moulding Inductor( Carbonyl Powder)

MDCA(Automotive Grade)

FEATURES

?Shielded construction

?Capable of corresponding high frequency

?Low loss realized with low DCR

?High performance (Isat) realized by Carbonyl Powder

?Ultra low buzz noise, due to composite construction

?100% Lead(Pb)-Free and RoHS compliant

?AEC-Q200 qualified

?Operating temperature: -55 °C  to +125 °C


APPLICATION

?Headlamps, tail lamps and interior lighting

?HVAC

?Doors, window lift and seat control

?Audio subsystem

?Digital instrument cluster

?In-Vehicle Infotainment and navigation

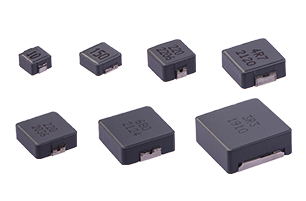

MDCA
Product List


PictureSerial No.Dimension(mm)

Inductance(μH)

Temperature

Rise Current(A)

Saturation Current(A)

DC Resistance(mΩ)Download
1670404815913006.pngMDCA30123.5*3.2*1.00.22~10.01.0~6.51.4~10.014.0~498下载
1670404815913006.pngMDCA30153.5*3.2*1.30.22~10.01.2~7.01.6~10.814.0~435下载
MDCA3020.pngMDCA30203.5*3.2*1.80.1~10.01.4~10.51.6~14.06.6~366下载

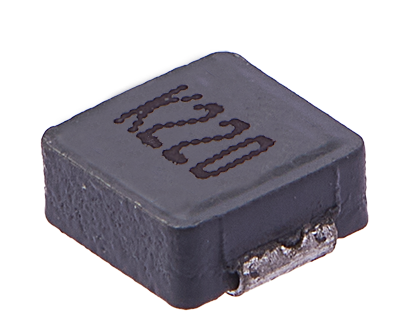

1678242166956931.pngMDCA40204.45*4.06*1.80.1~22.01.2~14.01.4~35.03.2~470下载

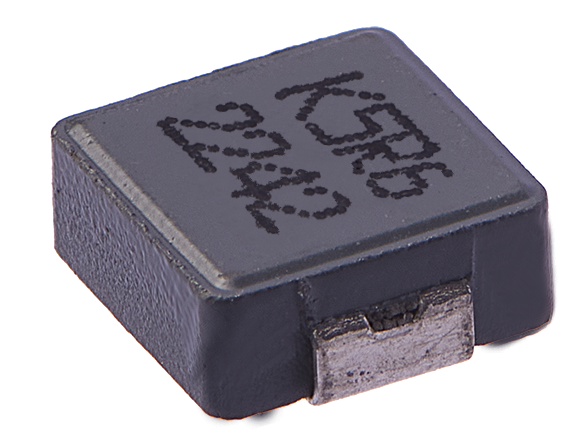

1678242477173518.pngMDCA50305.7*5.2*2.80.1~33.01.6~23.01.6~27.02.5~380下载
image.pngMDCA60207.0*6.6*1.80.1~22.01.5~21.02.5~40.02.0~236下载
1678242477173518.pngMDCA70307.3*6.6*2.80.1~22.02.0~32.53.5~60.01.2~165下载
MDCA7030.pngMDCA70507.3*6.6*4.80.33~33.02.0~25.03.5~32.02.5~173下载

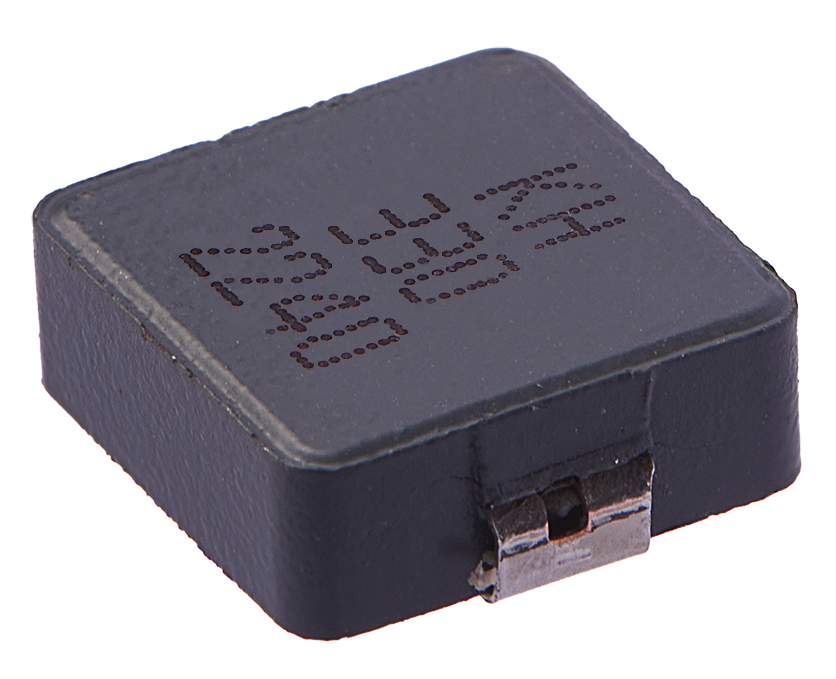

1678242302320408.pngMDCA104011.0*10.0*3.80.15~47.02.9~42.04.3~74.00.6~147下载
1678242343937414.pngMDCA135013.5*12.5*4.80.2~47.04.0~52.06.5~1100.45~100下载
微信截图_20240813155304.pngMDCA136513.5*12.5*6.20.15~1004.2~55.05.5~1180.49~145下载
1678242343937414.pngMDCA187017.6*16.9*6.70.33~1005.3~70.012.0~1300.75~102下载
