FEATURES
?Low loss realized with low DCR.
?Ultra low buzz noise, due to composite construc on .
?100% Lead(Pb)-Free and RoHS compliant.
?High performance (Isat) realized by metal dust core
?AEC-Q200 quali?ed.
?Operating temperature:-55°C to +155°C
APPLICATION
?Headlamps, tail lamps and interior lighting
?HVAC
?Doors, window lift and seat control
?Audio subsystem
?In-Vehicle Infotainment and navigation

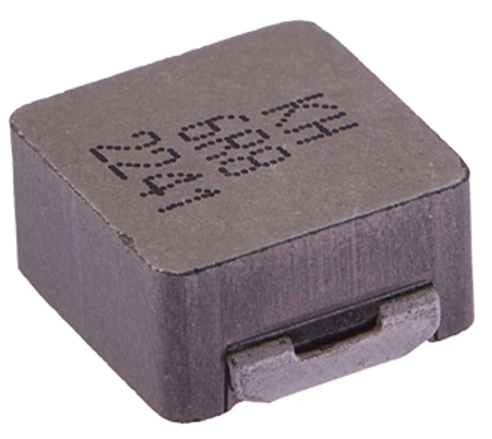

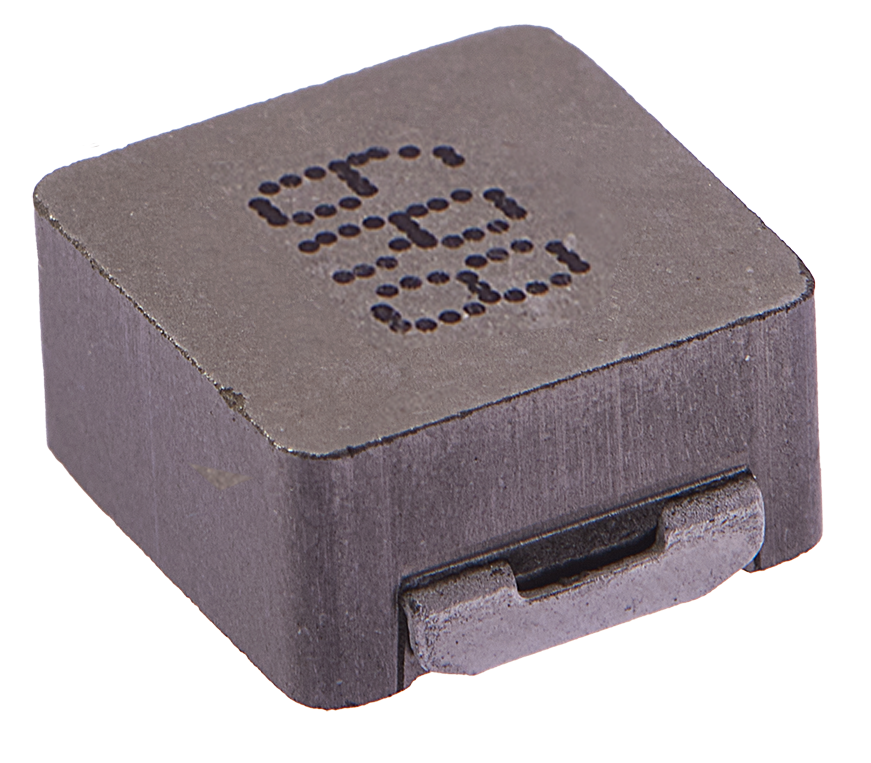

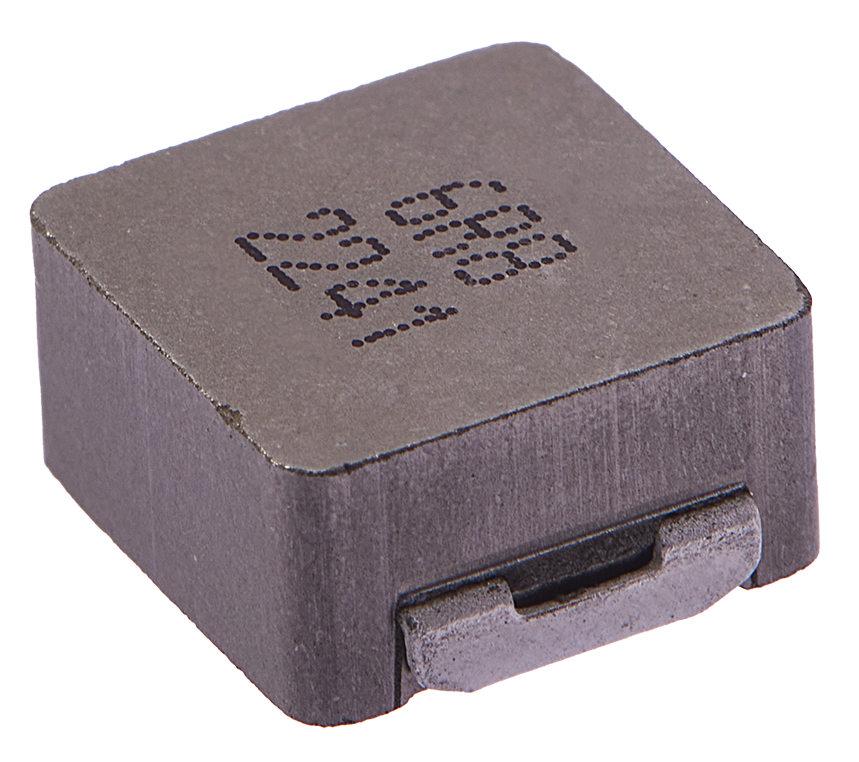

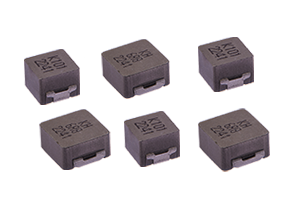

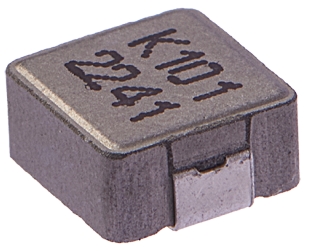

| Picture | Serial No. | Dimension(mm) | Inductance(μH) | Temperature Rise Current(A) | Saturation Current(A) | DC Resistance(mΩ) | Download |
 | MDA4020HT | 4.3*4.2*1.9 | 0.1~10.0 | 3.1~19.0 | 3.3~32.2 | 1.9~126 |  |
 | MDA5030HT | 5.45*5.25*2.8 | 0.33~10.0 | 2.8~16.7 | 2.35~11.2 | 5.0~129.5 | |
 | MDA5040HT | 5.5*5.25*3.8 | 0.47~22.0 | 2.7~13.5 | 3.0~14.5 | 5.5~170 | |
 | MDA7030HT | 6.95*6.6*2.8 | 0.47~22.0 | 2.8~17.0 | 2.4~16.3 | 4.62~174 | |
  | MDA6045HT | 7.2*6.6*4.3 | 0.22~100 | 1.5~22.2 | 2.4~57.2 | 2.0~413 | |
 | MDA7054HT | 7.9*7.2*5.2 | 1.5~100.0 | 1.8~11.5 | 2.4~16.4 | 6.3~303.0 | |
 | MDA8054HT | 8.7*8.3*5.2 | 1.0~47.0 | 3.5~15.5 | 5.2~22.0 | 4.0~122 | |
 | MDA1040HT | 10.85*10.0*3.8 | 1.0~47.0 | 3.0~23.7 | 3.2~20.4 | 3.1~178 | |
 | MDA1054HT | 11.0*10.0*5.1 | 0.68~100.0 | 2.8~32.0 | 3.5~46.0 | 1.8~215.0 | |
 | MDA1365HT | 13.45*12.6*6.2 | 1.0~47.0 | 4.2~32.0 | 3.8~20.0 | 2.1~104 | |
