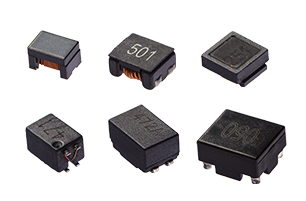

FEATURES
?Chip common mode filter for large current applications
?Low profile design makes it optimal for surface mounting
?Operating temperature:-40℃ to +125℃
APPLICATION
?Power line noise countermeasure for various electronic equipment
?Noise countermeasure for adapter lines and battery lines or largerelectronic equipment such as note PCs and word processors
| Picture | Serial No. | Dimension(mm) | Impendace(Ω) | Temperature Rise Current(A) | DC Resistance(Ω) | Download |
 | SCM1210HS | 1.2*1.0*0.9 | 35~90 | 0.20~0.4 | 0.30~0.40 |  |
 | SCM1608 | 1.6*1.1*0.85 | 22~250 | 0.40~0.55 | 0.08~0.28 | |
 | SCM2012 | 2.0*1.2*1.2 | 67~1000 | 0.10~0.40 | 0.25~1.30 | |
 | SCM2520 | 2.5*2.0*1.2 | 300~1000 | 0.24~0.40 | 0.25~0.50 | |
 | SCM3216 | 3.2*2.0*1.6 | 90~2200 | 0.20~0.40 | 0.30~1.20 | |
| SCM3225 | 3.2*2.5*2.2 | 90~1000 | 0.40~1.00 | 0.05~0.30 | |
| SCM3225L | 3.3*2.5*2.5 | 550~5100 | 0.15~0.3 | 0.4~1.5 | |
| SCM4015 | 4.0*4.0*1.6 | 10~180 | 1.1~3.1 | 0.016~0.12 |
|
 | SCM4532 | 4.5*3.2*2.8 | 90~2800 | 0.90~4.00 | 0.05~0.35 | |
 | SCM4532L | 4.5*3.2*2.8 | 600~5800 | 0.2~0.36 | 0.6~2.0 | |
 | SCM6033 | 6.0*5.0*3.3 | 800~4000 | 0.3~0.4 | 0.18~0.35 | |
 | SCM4520 | 5.0*4.5*2.3 | 60~1200 | 1.90~3.20 | 0.035~0.081 | |
 | SCM5020 | 5.0*4.8*2.5 | 100~1500 | 1.50~6.00 | 0.013~0.056 | |

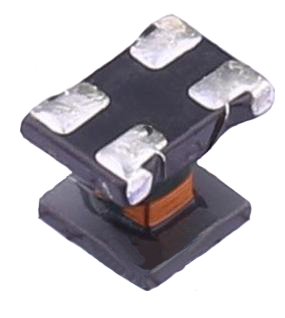

 | SCM5040 | 5.0*4.8*4.5 | 190~4000 | 0.2~5.0 | 0.02~0.3 | |
 | SCM6536 | 6.5*3.6*1.65 | 300~2000 | 0.3 | 0.16~0.30 | |
| SCM7060 | 7.5*6.0*3.8 | 70~4000 | 0.80~15.0 | 0.005~0.10 | |
 | SCM9035 | 9.0*7.0*3.5 | 3000 | 0.45 | 0.45 | |
 | SCM9250 | 9.2*6.0*5.0 | - | 0.35~1.60 | 0.08~1.20 | |

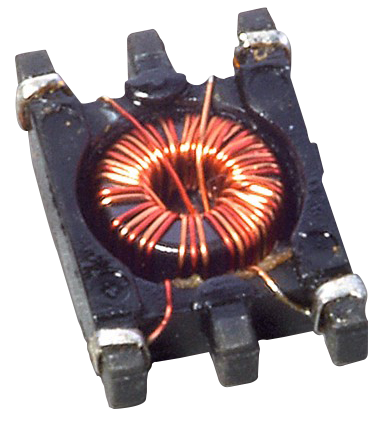

 | SCM9266 | 9.2*7.24*2.5 | 1600-5000 | 0.45~0.70 | 0.14~0.45 | |
 | SCM9040 | 9.5*5.6*5.2 | 300~5000 | 0.20~2.50 | 0.1~0.7 | |
| SCM9070 | 9.5*7.0*4.8 | 300~4000 | 1.80~6.00 | 0.006~0.10 | |
 | SCM1009 | 10.3*9.0*6.5 | 500-2200 | 1.40~5.00 | 0.0055~0.060 | |

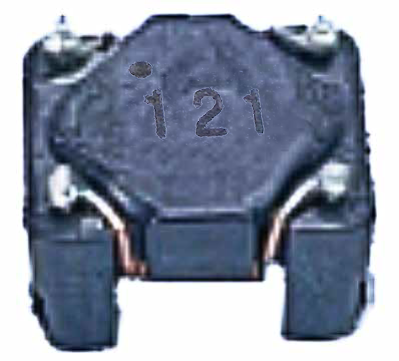

 | SCM1009B | 10.5*9*6.5 | 200~6200 | 0.35~2.50 | 0.025~0.72 | |

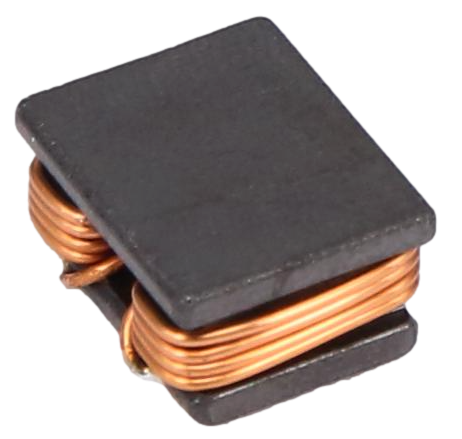

 | SCM121006 | 12.0*10.0*6.0 | 900~1400 | 4.00~9.00 | 0.012~0.036 | |
 | SCM1211 | 12.5*10.8*6.4 | 80~2700 | 1.50~10.0 | 0.002~0.05 | |
 | SCM1513 | 15.0*13.0*6.6 | 300~1500 | 5.0~13.0 | 0.005~0.023 | |
